Sliding Doors.
Built for Scale.
Four collections — from compact urban sliders to the 200ft+ motorised ImperialSlide 150D. SCHON sliding systems are engineered for every scale of architectural ambition in India.
Engineered for India's Largest Openings.
Maximum span width
Maximum panel height
Wind load resistance
Interlock sightline range
Four Collections. Every Opening Covered.

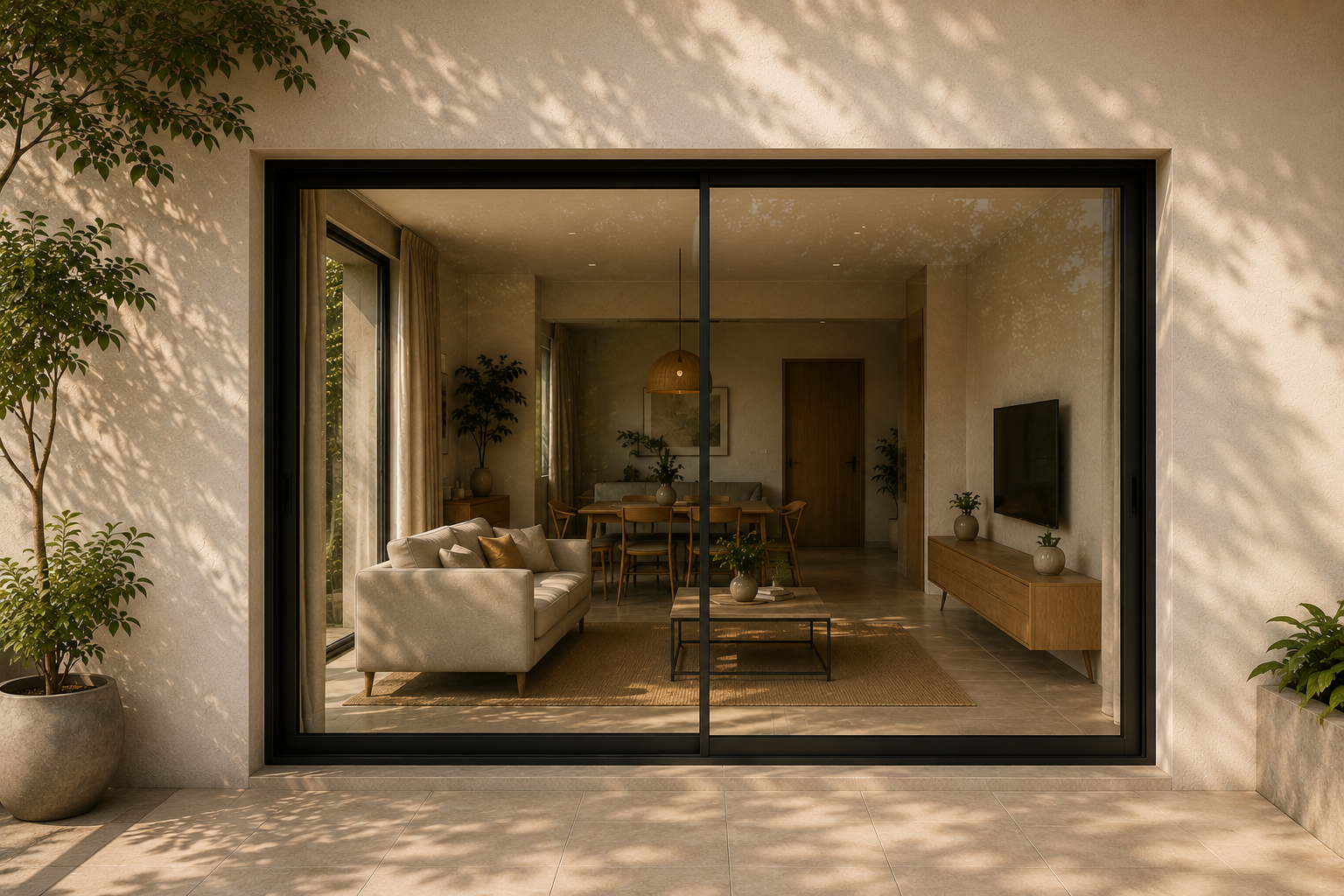

UrbanSlide 987
SCH-987 · 26mm Interlock · 2.5 Track
Compact, efficient sliding for apartments and urban homes — where space efficiency, smooth daily operation, and clean aesthetics matter most.
- Max 14ft height × 14ft width
- 2-Panel Sliding or Fixed + Sliding
- 26mm interlock sightline
- Toughened / Reflective / Laminated glass

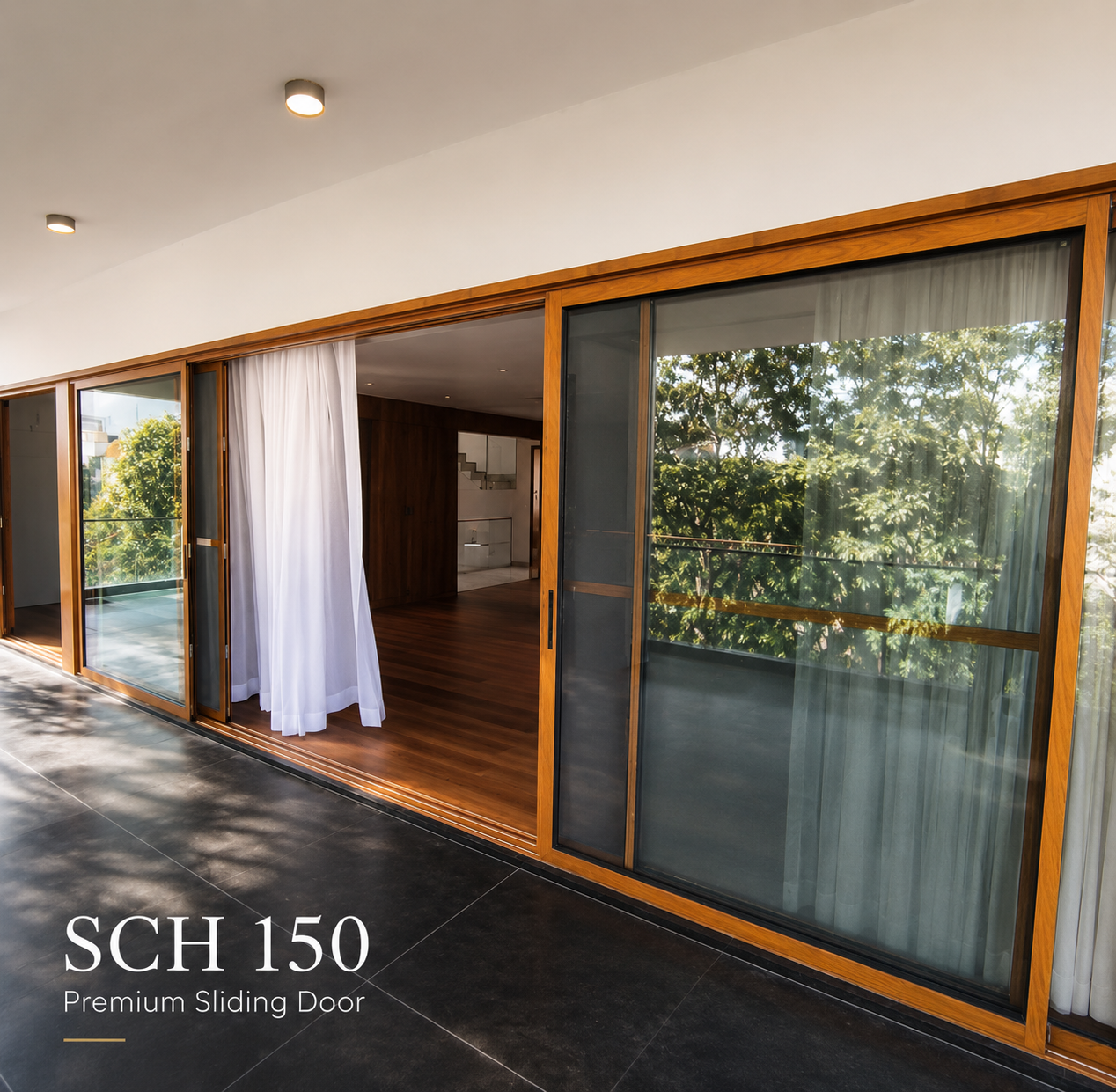

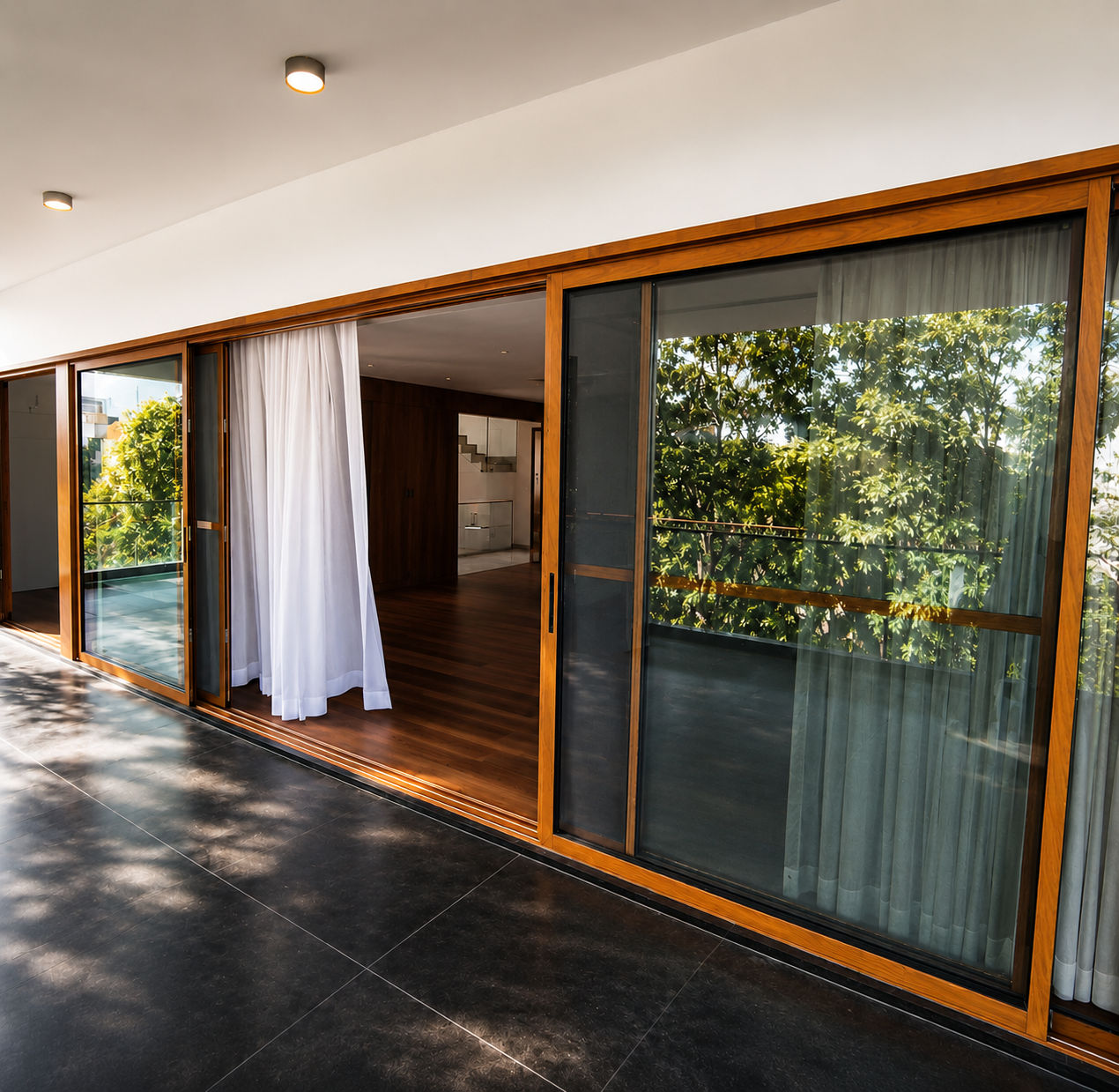

SignatureSlide 150
SCH-150 · 150mm Frame · 3 Track · Up to 40ft Wide
Premium architectural sliding for luxury villas and large openings — a true 3-track platform with low-track and rainwater duct options.
- Max 16ft height × 40ft width
- 26mm / 65mm interlock options
- Low-track near-flush floor transition
- 100% stainless steel rollers
- DGU up to 30mm

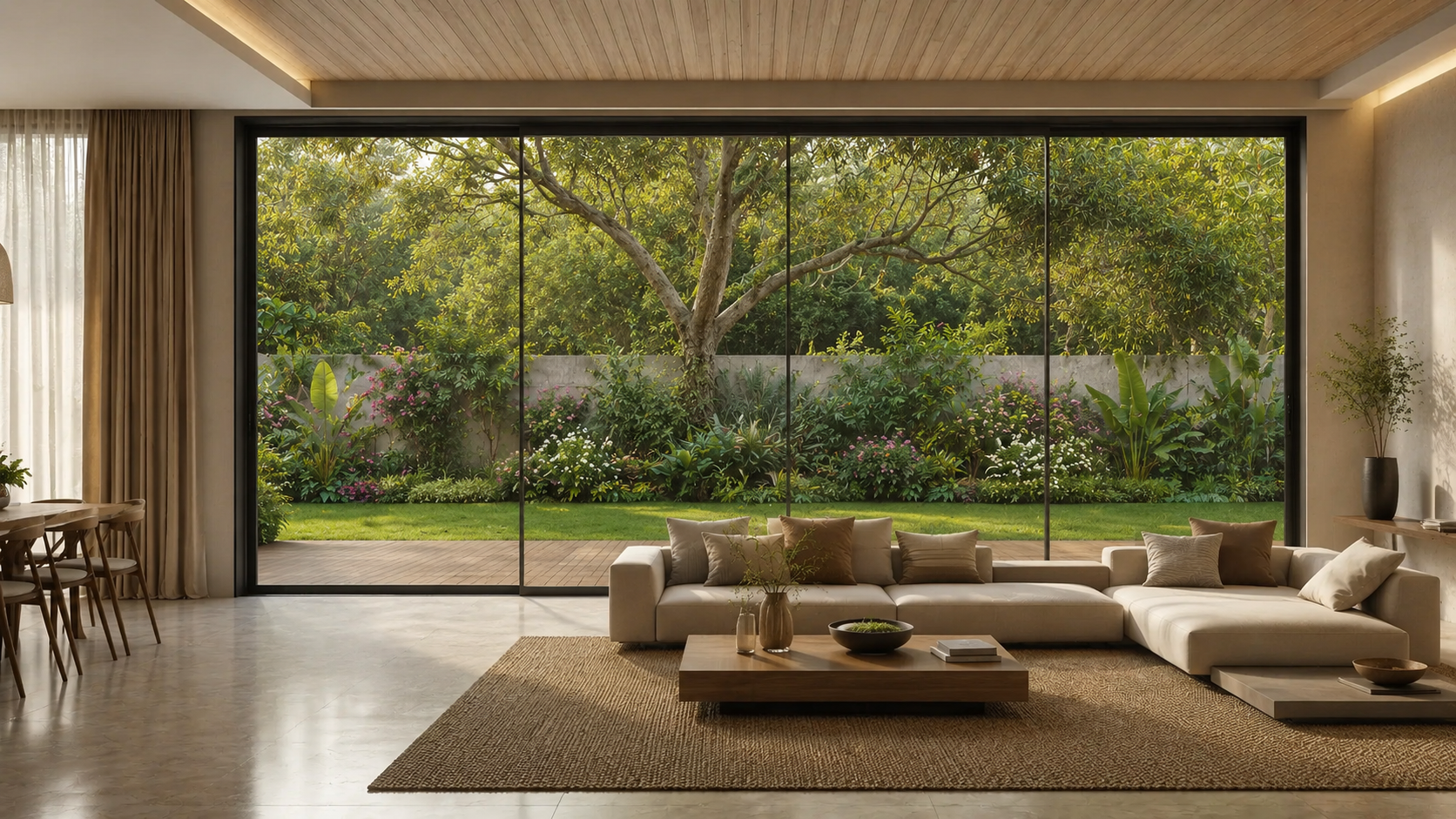

InfinitySlide 234
SCH-234 · 26mm All-Sides Interlock · Up to 45ft Wide
The most architecturally refined slim-profile sliding system — 26mm interlock on all four sides, sash concealed on sides and top for an almost frameless wall of glass.
- Max 16ft height × 45ft width
- 26mm sightline on all four sides
- Sash concealed on sides and top
- DGU up to 32mm, 4 KPa+ wind rated
- Ultra-luxury villas & panoramic glazing

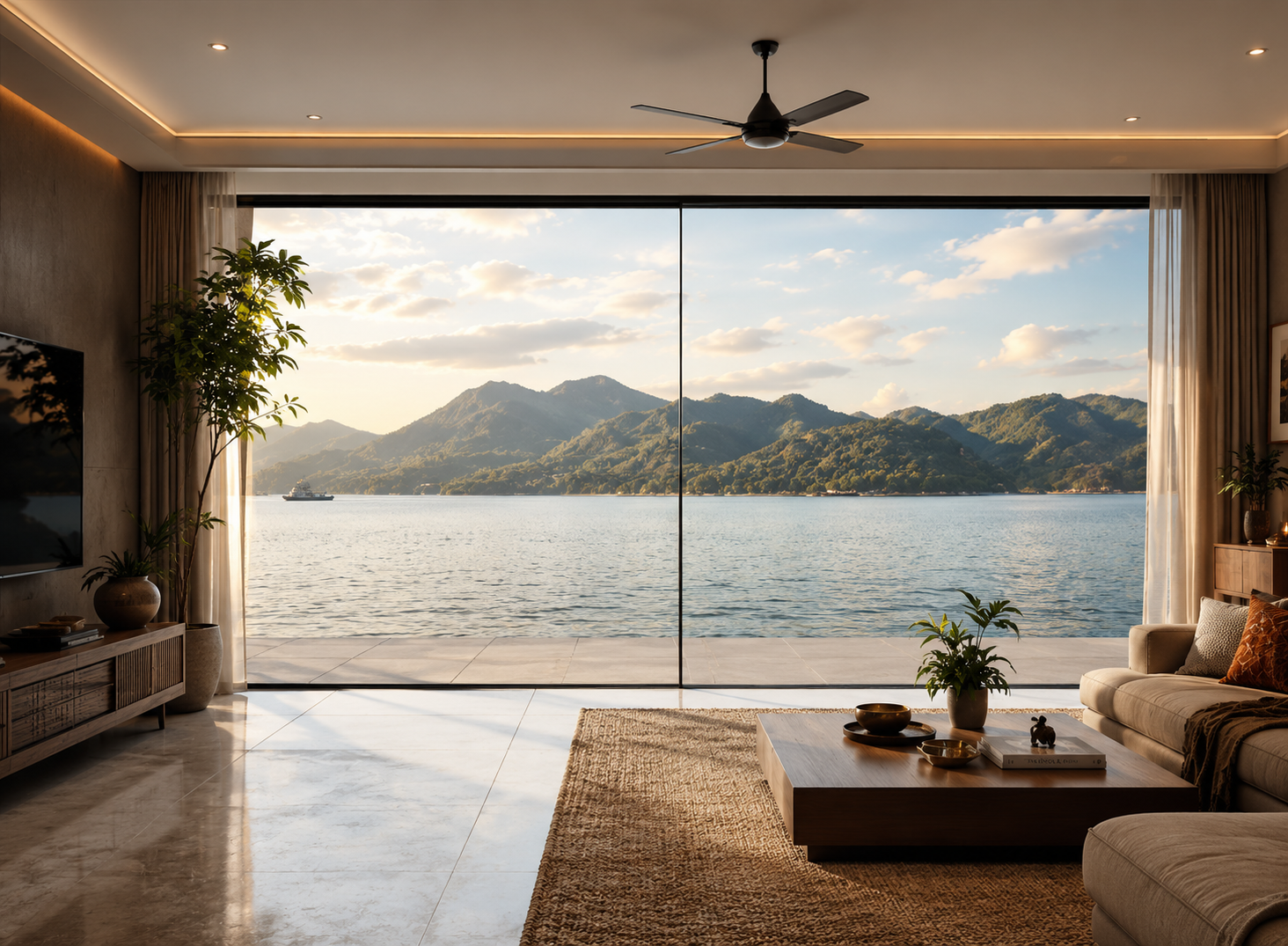

ImperialSlide 150D
SCH-150D · 19mm Interlock · 200ft+ Span · Manual & Auto
The most capable sliding system in India — any number of tracks, spanning 200ft+ at 22ft tall. Manual and fully automatic motorised variants with smart-home integration.
- Max 22ft height × 200ft+ width
- 19mm narrowest interlock in the SCHON range
- Curved glass configurations (exclusive)
- Manual or fully motorised / smart-home
- 5 KPa+ wind load, 45–50 dB acoustic
What Sets SCHON Sliding Apart.
Exceptional Security
Thick aluminium gauge ranging from 2mm to 7mm — among the heaviest-gauge sliding systems available in India. Structurally superior to standard market alternatives.
SS Security Mesh
Stainless steel security mesh shutters available on select systems — impenetrable, corrosion-resistant, and seamlessly integrated into the frame design.
Massive Span Capability
ImperialSlide 150D spans 200ft+ wide and 22ft tall. InfinitySlide 234 reaches 45ft. SignatureSlide 150 covers 40ft — engineered for the grandest architectural visions.
Wind & Weather Rated
Tested to 5kPa+ wind load resistance and superior water tightness — built for coastal, high-rise, and exposed environments across India.
100% SS Hardware
Every roller, handle, and lock is stainless steel. No engineered plastic. No nylon. Zero corrosion, lifetime performance.
German Engineering
DIN-standard precision tolerances, certified systems, and profiles designed specifically for Indian climatic and load conditions.
Technical Specifications
| Specification | UrbanSlide 987 | SignatureSlide 150 | InfinitySlide 234 | ImperialSlide 150D |
|---|---|---|---|---|
| System Code | SCH-987 | SCH-150 | SCH-234 | SCH-150D |
| Collection | Urban | Signature | Infinity | Imperial |
| Product Name | UrbanSlide 987 | SignatureSlide 150 | InfinitySlide 234 | ImperialSlide 150D |
| Interlock Sightline | 26 mm | 26 / 65 mm | 26 mm (all sides) | 19 mm |
| Frame Depth | 87 mm | 150 mm | — | 150 mm |
| Sash Depth | — | 65 mm | 79 mm | 72 mm |
| Max Height | 14 ft | 16 ft | 16 ft | 22 ft |
| Max Width | 14 ft | 40 ft | 45 ft | 200 ft+ |
| Track | 2.5 Track | 3 Track | 2T / 3T | Any number |
| Glass | 4–8 mm | Up to 30mm DGU | Up to 32mm DGU | DGU 24–40mm |
| Curved Configuration | — | — | — | Yes (exclusive) |
| Automation | — | — | — | Manual / Motorised |
| SS Security Mesh | — | Yes | — | — |
| Wind Load | 1.2 KPa | 2 KPa+ | 4 KPa+ | 5 KPa+ |
| Acoustic | 20–25 dB | 35–40 dB | 35–40 dB | 45–50 dB |
| Finish Options | Powder Coat, Anodising, PVDF, Wood | Powder Coat, Anodising, PVDF, Wood | Powder Coat, Anodising, PVDF, Wood | Powder Coat, Anodising, PVDF, Wood |
Ready to Specify SCHON Sliding
for Your Project?
Our technical team will help you select the right collection, track configuration, and finish for your exact opening dimensions and requirements.
